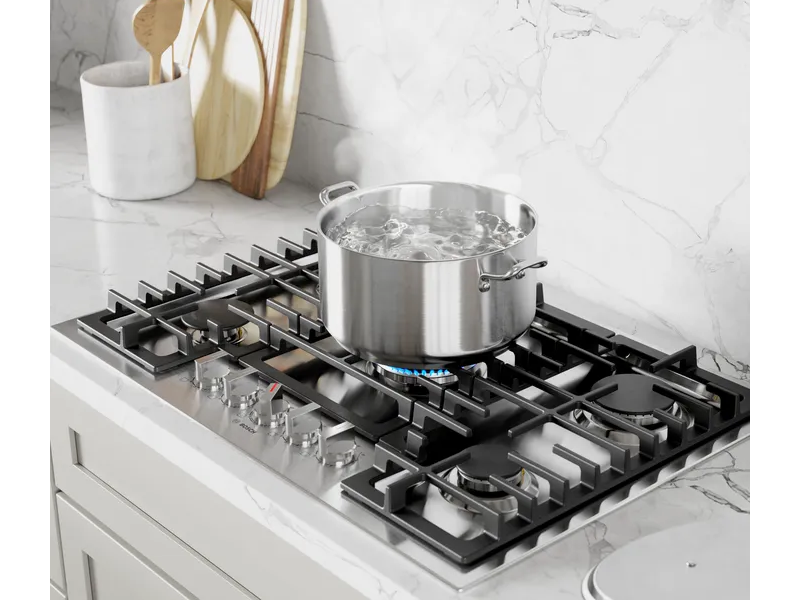

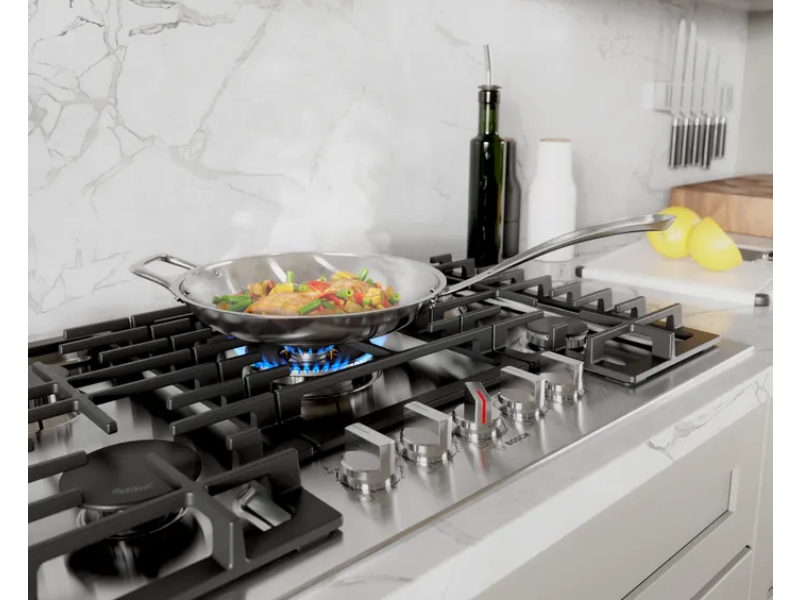

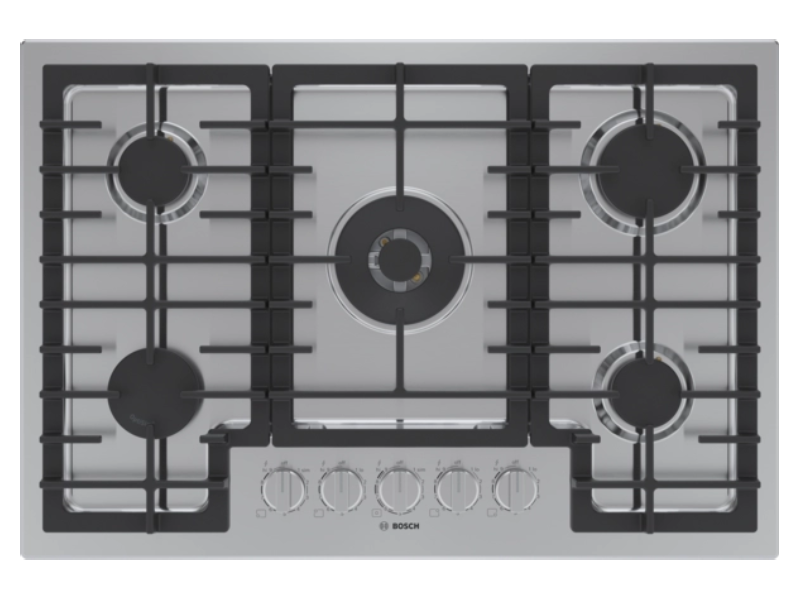

30" Bosch 5 Burners 800 Series Gas Cooktop - NGM8059UC
Literature
Features & Benefits
- FlameSelect® offers 9 distinct power levels and delivers precision flame height every time for consistent, repeatable results.

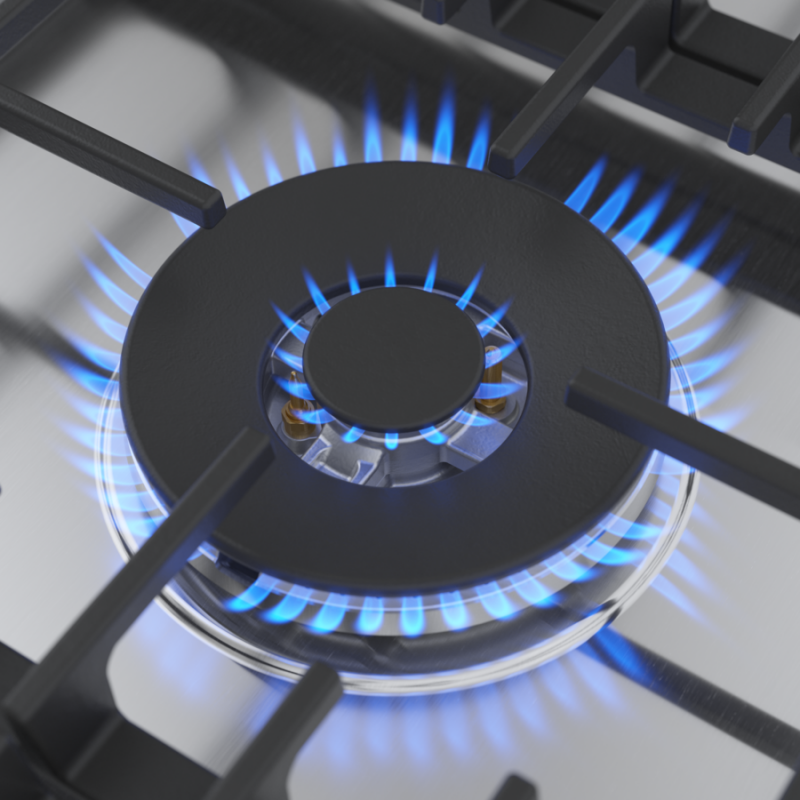

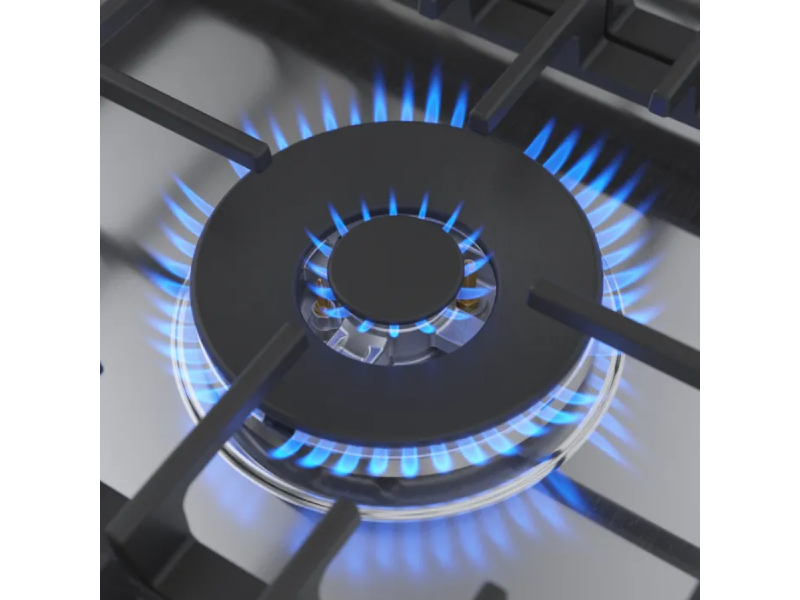

- Dual-ring power burner has 2 rings for low and high flame settings so you can go from simmer to sear with ease.

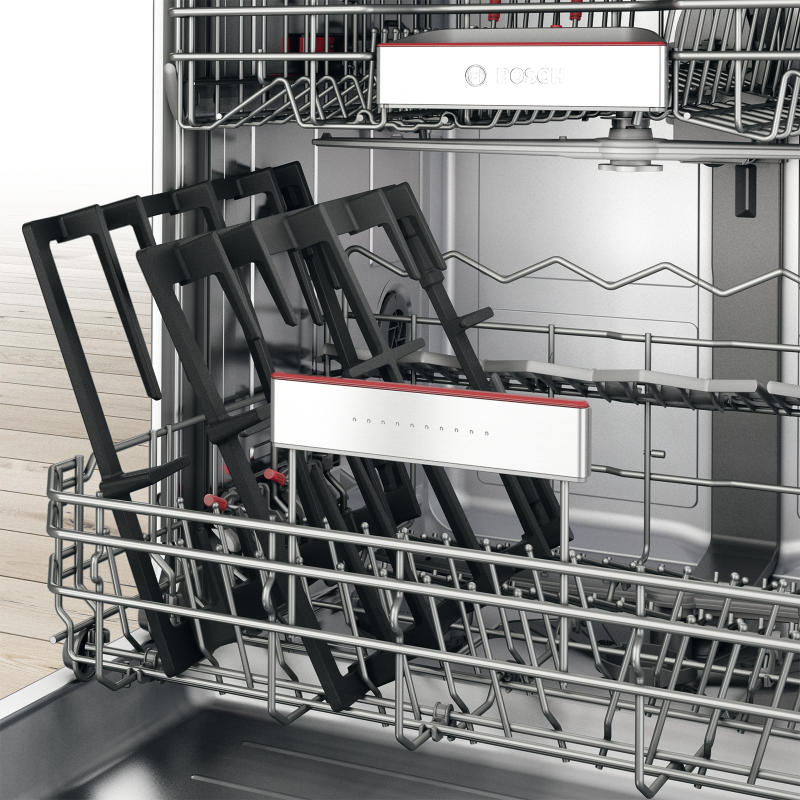

- Dishwasher safe heavyduty enameled cast iron grates makes cleanup simple and convenient.

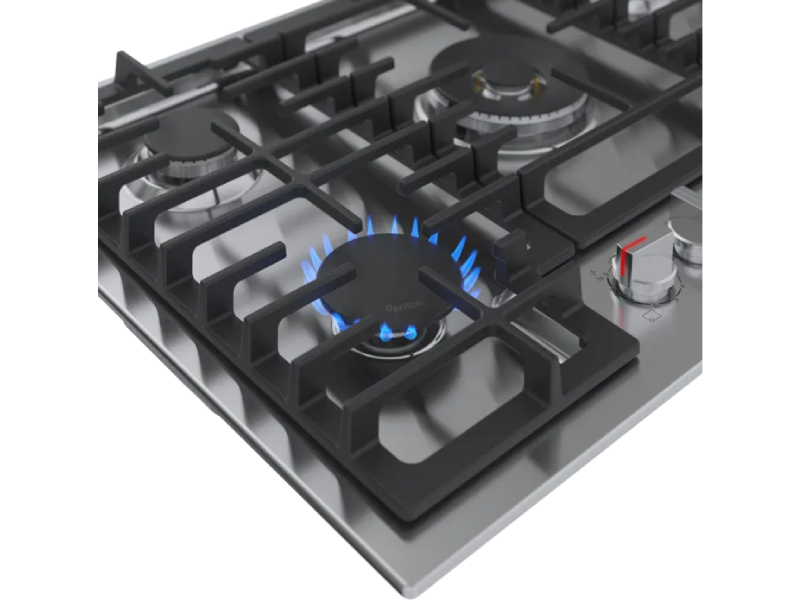

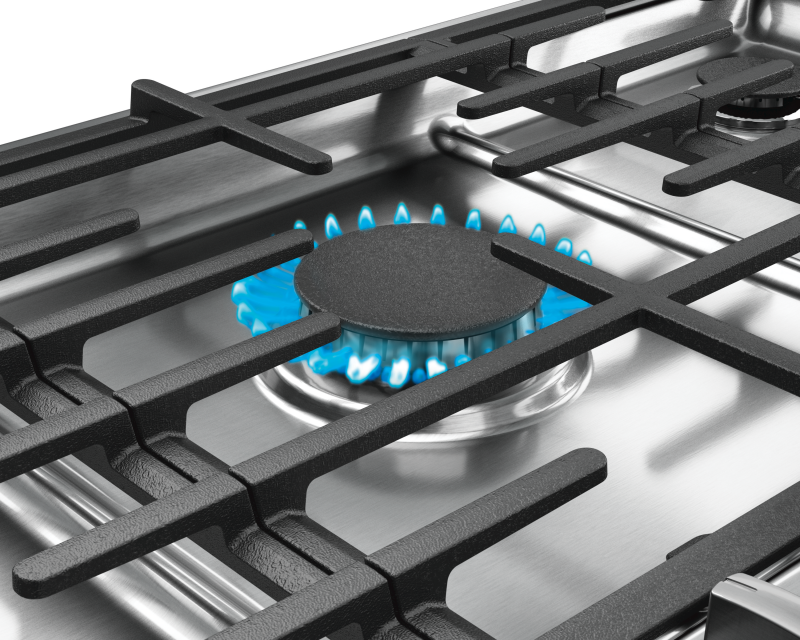

- OptiSim® burner offers more flame control at the lowest settings for precise simmering and melting.

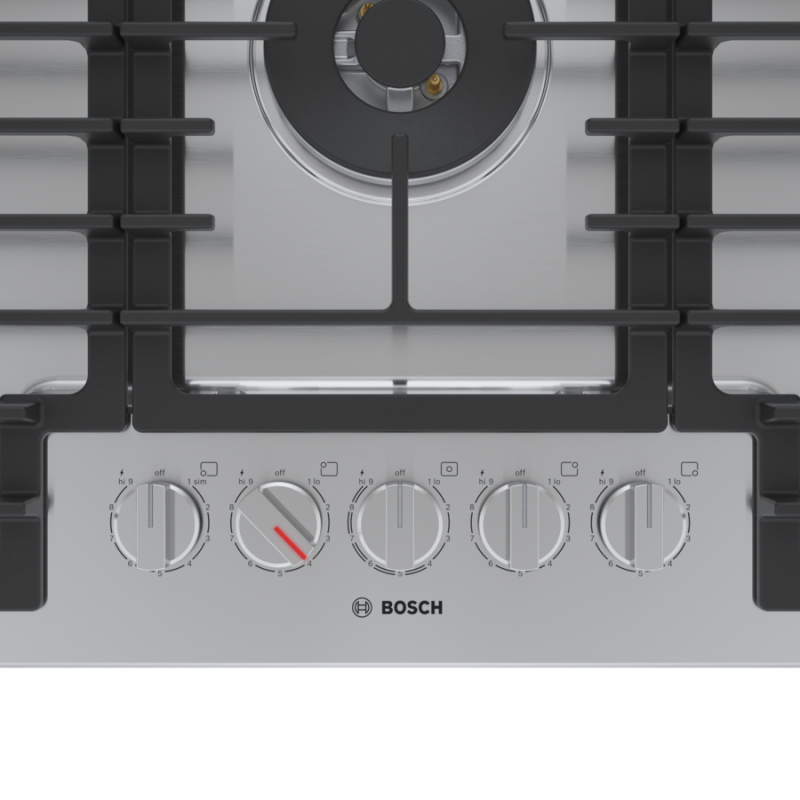

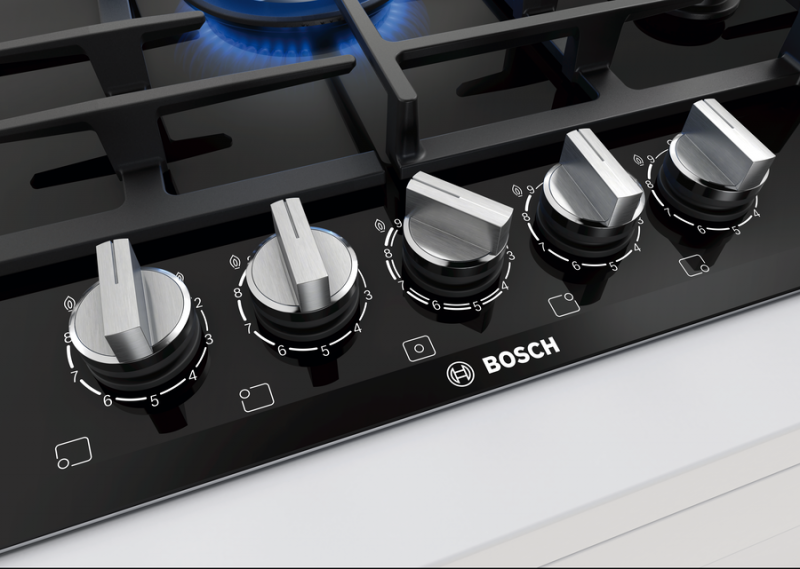

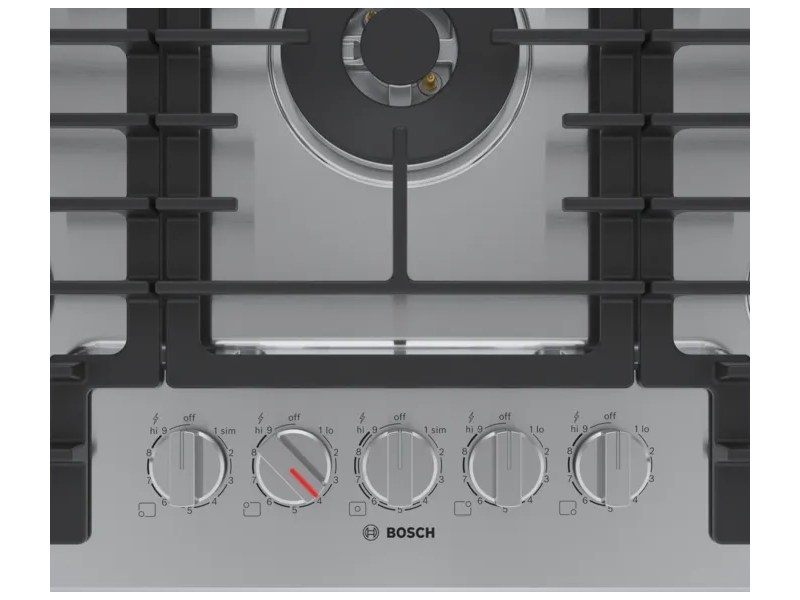

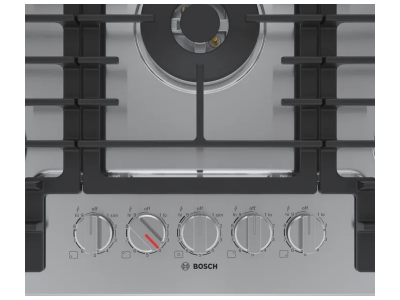

- Control knob with red LED light line indicates if burner is on and the burner's residual heat.
General Properties | |
---|---|
Number of Burner | 5 |
Knob color | Stainless Steel Appearance |
Control location | Front-center |
Sealed burners | Yes |
Valves | Five 9-level gas step valves |
Ignition system | Electronic; thermocouple flame monitor control |
Surface | Stainless steel |
Grate material | Cast iron |
Grate features | Continuous grates,dishwasher safe |
Element Performance | |
Total BTU load (NG / LP) | 42,700 / 41,400 |
Power of front left burner (NG / LP) | 3,400 / 3,400 |
Power of back left burner (NG / LP) | 6,000 / 6,000 |
Power of center burner (NG / LP) | 17,000 / 15,700 |
Power of back right burner (NG / LP) | 10,300 / 10,300 |
Power of front right burner (NG / LP) | 6,000 / 6,000 |
TECHNICAL DETAILS | |
Circuit breaker | 15 A |
Volts | 120 V |
Frequency | 60 Hz |
Plug type | 3-prong |
Power cord length | 40" |
Energy source | Natural Gas (factory set) |
Convertible to LP (kit required) | Yes |
Dimensions & Weight | |
Overall appliance dimensions (HxWxD) | 4 1/2" x 31" x 21 1/4" |
Required cutout size (HxWxD) | 2" x 28 15/16" x 19 1/8" |
Minimum distance from counter front | 1 7/8" |
Minimum distance from rear wall | 3" |
Dimensions and Weight | |
Net weight | 51 lbs |
Accessories—Included | |
Included | LP Conversion Kit, OptiSim® Cap |
